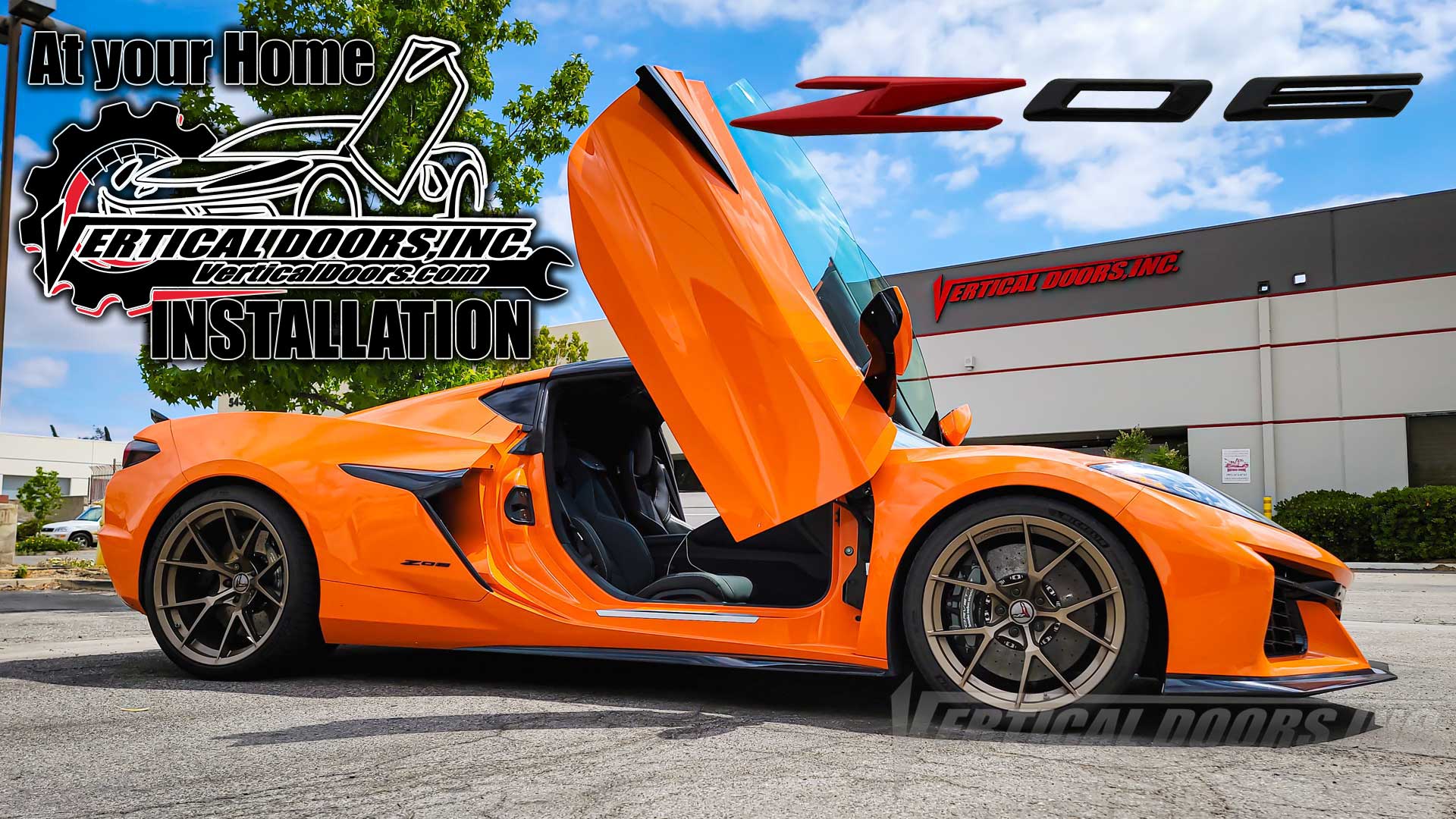

Chevrolet Corvette C8 Z06, E-Ray, ZR1, ZR1X, Grand Sport & Grand Sport X Vertical Door Kit + Mobile Installation

Bring the Vertical Doors, Inc. Installation Experience to Your Corvette

The Corvette C8 Z06, E-Ray, ZR1, ZR1X, Grand Sport and Grand Sport X already have the shape and road presence of serious performance cars. A genuine Vertical Doors, Inc. conversion gives the original doors a movement that looks right at home on them.

Open the converted door outward for entry or exit, then raise it vertically when you want the full effect. This mobile package gives eligible customers a professional installation at an approved location without bringing the Corvette to our Lake Elsinore, California facility.

Vehicle Fitment

Confirm your Chevrolet Corvette C8 model and model year before ordering.

Kit and Mobile Installation Package Details

What Is Included?

• VDCCHEVYCORC823Z06 Vertical Door Conversion Kit
• Driver-side and passenger-side Vertical Doors, Inc. hinge assemblies
• Two application-matched gas shocks
• Required mounting hardware
• Professional mobile installation at an approved location
• Installer travel within the approved service area
• Required installation adjustments
• Final door-operation testing

Where Is Mobile Installation Available?

Mobile installation is available only at eligible locations in the contiguous United States. Alaska, Hawaii and Puerto Rico are excluded.

Availability depends on the vehicle, installation address, suitable work area, installer routing and scheduling. Vehicle fitment does not automatically guarantee mobile-service availability.

Call 951-245-8669 or submit an Installation Options Request with the Corvette model, model year, ZIP code, modification information and current vehicle photographs.

What Does the Installer Need at Your Location?

The installation does not have to take place at your house. An approved home, business, automotive shop, private workspace or another suitable location may be used.

The installer needs safe vehicle access and enough room to remove body panels, support and open the doors, work around both sides of the Corvette and complete the required adjustments.

Tell Vertical Doors, Inc. before scheduling if the location has gated access, parking restrictions, limited workspace, a steep driveway, restricted vehicle access or another condition that may affect the installation.

Tell Us About Vehicle Modifications Before Scheduling

Modifications or previous body repair can change the installation requirements. Tell us before scheduling if the Corvette has:

• Aftermarket or replacement fenders
• Widebody components or modified bodywork
• Previous collision repair near the door or fender area
• Air-bag suspension
• Wheels measuring 21 inches or larger
• A previous vertical-door or hinge conversion
• Other body or suspension changes that may affect clearance

How Do the Converted Doors Open?

The conversion replaces the factory hinge assemblies while retaining the original Corvette doors.

Open the door outward until it reaches the hinge system's stopping point. From there, raise the door vertically. The gas shock assists with the weight of the door during the upward movement.

You do not have to raise the door every time you enter or exit. The initial outward movement provides room for entry and exit before the door is lifted.

What Happens During the Mobile Installation?

The installer removes the body panels required for access, safely supports the original door, records its position, removes the factory hinge assemblies and installs the vehicle-specific Vertical Doors, Inc. system.

The installation includes wiring-clearance work, required non-visible clearance work, gas-shock installation, hinge adjustment, door and latch alignment and operational testing.

Door movement, hinge stops, gas-shock operation, latch engagement, wiring clearance and surrounding panel gaps are checked before the installation is considered complete.

Does Installation Require Modification?

Yes. This is a vehicle-specific bolt-on hinge conversion, but bolt-on does not mean modification-free.

• The hinge uses the Corvette's factory hinge mounting area.
• The original Corvette doors are retained.
• Body-panel removal is required for installation access.
• Non-visible trimming or clearance work is required as needed so the hinge arm can move properly.
• Wiring must have enough movement and clearance through the complete range of door travel.

Why Choose a Genuine Vertical Doors, Inc. Kit?

Vertical Doors, Inc. has manufactured vehicle-specific door conversion systems for more than 20 years. The included VDCCHEVYCORC823Z06 system is engineered for the confirmed Corvette C8 applications on this page. It is not adapted from a universal hinge.

• Vehicle-specific Chevrolet Corvette C8 engineering
• Original Corvette doors are retained
• Factory hinge mounting area is used
• Made in the USA
• Domestic hardened steel used for the main hinge components
• Professional mobile installation for eligible customers and locations
• Technical support directly from Vertical Doors, Inc.

Other Corvette C8 Installation Options

More Corvette C8 Products and Information

Before You Order

Confirm the exact Corvette model, model year, vehicle modifications, installation ZIP code and work area before purchasing. Contact Vertical Doors, Inc. before placing the order if any fitment or mobile-service detail is uncertain.

Review the current shipping policy and refund policy before ordering and before making time-sensitive plans.

Corvette C8 Vertical Door Kit + Mobile Installation FAQ
