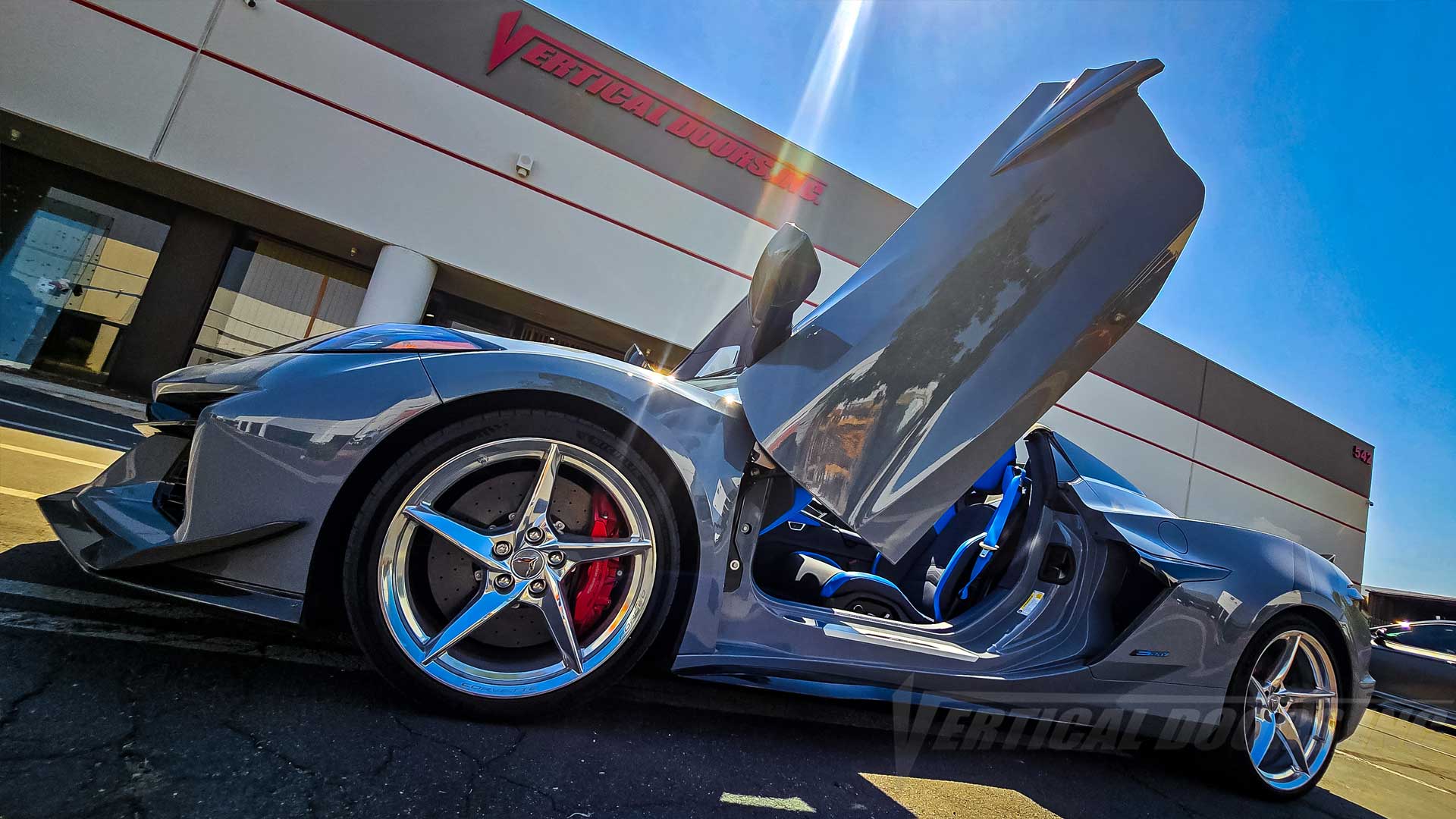

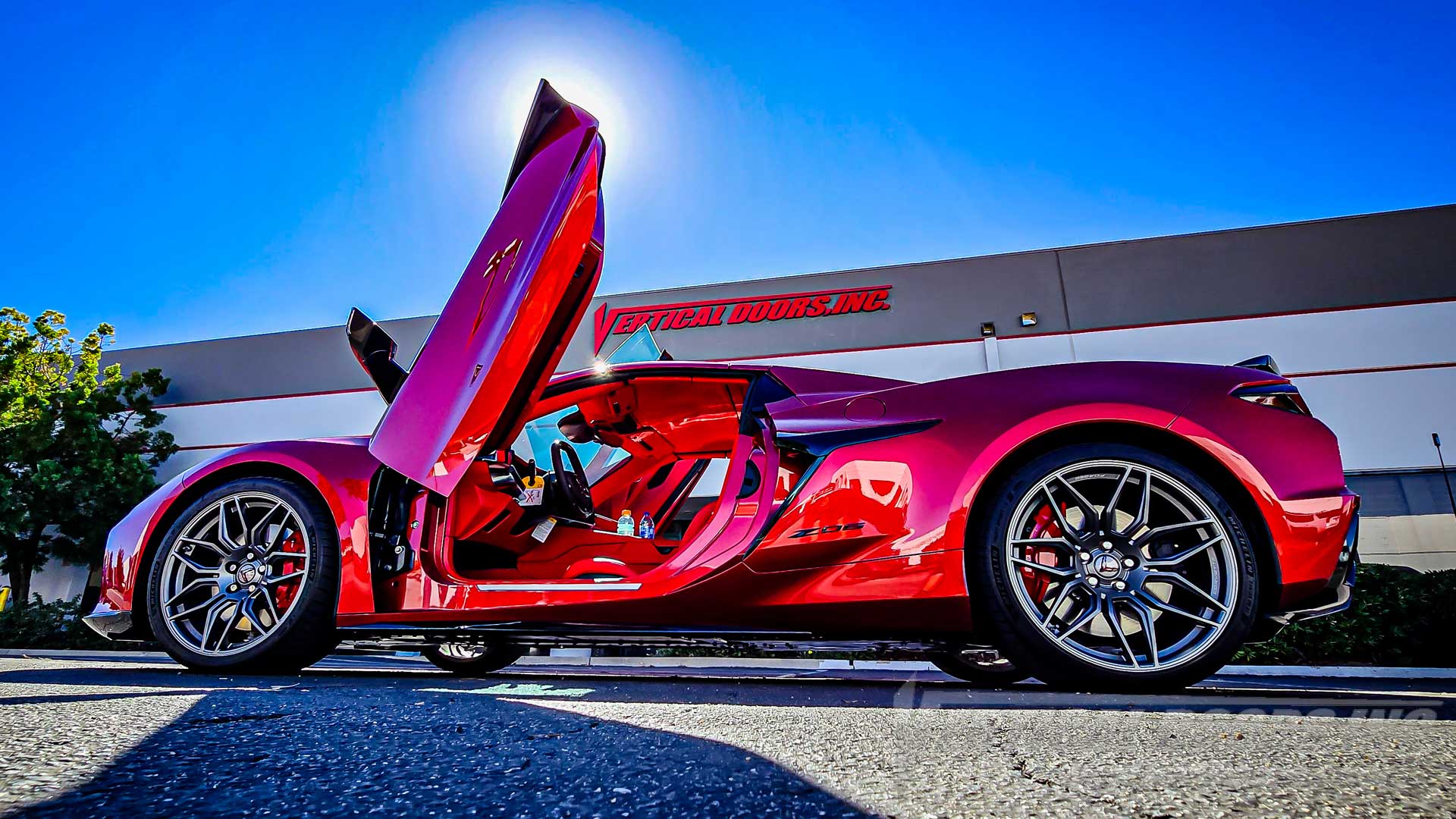

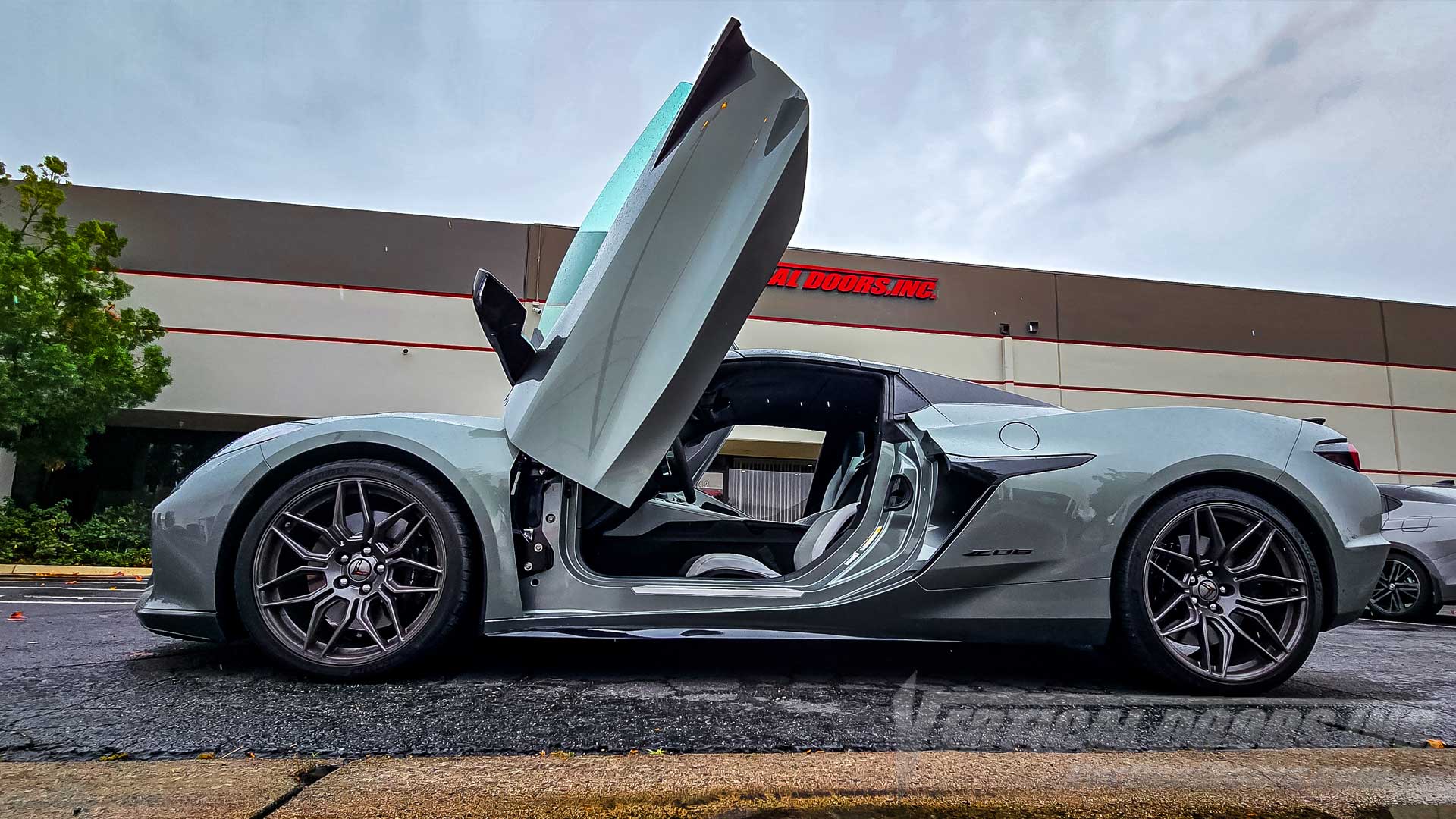

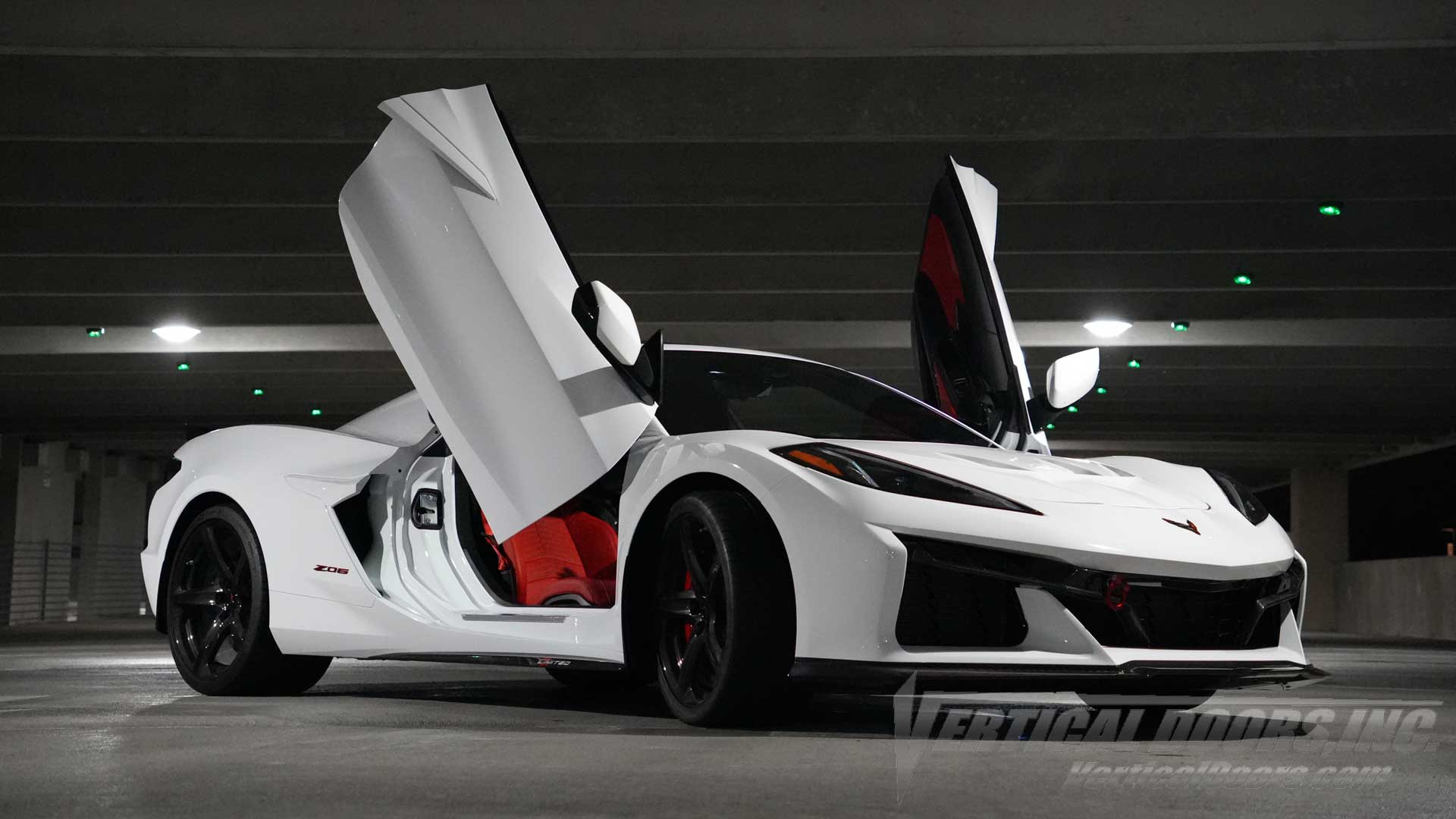

Vehicle-specific Vertical Door Kit for the 2023-2026 Chevrolet Corvette C8 Z06 and E-Ray. Vertical Doors, Inc. part VDCCHEVYCORC823Z06 retains the original Corvette doors and creates the signature outward-then-up door movement associated with a traditional vertical or “Lambo door” conversion.
This is the kit-only product. For a package that includes eligible mobile installation at your home or business, see the C8 Z06 and E-Ray Vertical Door Kit with mobile installation.
Make Every Corvette Arrival Feel Like an Event
The 2023-2026 Z06 / 2024-2026 E-Ray Chevrolet Corvette C8 Z06 & E-Ray brings a wider, more aggressive C8 presence to the street. Raising the doors adds another visual moment to a Corvette that already looks purposeful from every angle.
Open each converted door outward to the hinge system's stopping point to enter or exit, then raise it vertically and completely change the vehicle's parked presentation. At a car show, meet, photo shoot, weekend drive, or everyday stop, doors up create a display people notice, photograph, and remember.
The vehicle-specific VDCCHEVYCORC823Z06 system is engineered for the listed 2023-2026 Z06 / 2024-2026 E-Ray Chevrolet Corvette C8 Z06 & E-Ray application and retains the original doors, creating the exotic Lambo door or scissor door look without replacing the factory door shells.
Your Corvette already stands out. Make the way you open the doors just as unforgettable.
The VDI Support Promise
We are here before, during, and after your purchase.
Vertical Doors, Inc. can help with fitment questions before you order, installation guidance while the kit is being installed, and product support after the conversion is complete.
You are purchasing this system directly from Vertical Doors, Inc., the company that manufactures, supports, and stands behind it. If you have a question about fitment, installation, adjustment, replacement parts, or the product itself, the VDI team is here to help.
For current support hours and contact options, call 951-245-8669 or contact the VDI team.
Confirmed C8 Z06 and E-Ray Fitment
VDCCHEVYCORC823Z06 is designed for the following Chevrolet Corvette C8 applications:
- 2023-2026 Chevrolet Corvette C8 Z06
- 2024-2026 Chevrolet Corvette C8 E-Ray
This is not the standard Stingray kit. Most 2020-2026 C8 Stingray applications use part number VDCCHEVYCORC820. Contact Vertical Doors, Inc. before ordering for a ZR1, ZR1X, widebody conversion, aftermarket fenders, prior collision repair, air suspension, 21-inch-or-larger wheels, or any uncertain application.
Need fitment help? Call 951-245-8669 or contact the VDI team with the vehicle year, model, trim, and modification details.
Chassis / Platform and Trim Guide
-
Chassis / Platform: Corvette C8 architecture (GM Y2XX), mid-engine
-
Relevant trims, models, and packages: Z06 1LZ, 2LZ, and 3LZ; E-Ray 1LZ, 2LZ, and 3LZ, as applicable by model year
Fitment note: Z06 and E-Ray applications use different body hardware from the Stingray. Confirm the exact model, year, and body configuration.
Chassis, trim, engine, drivetrain, cab, body style, and package terminology is provided to help identify the vehicle. It does not expand the confirmed VDI application or guarantee fitment. Contact Vertical Doors, Inc. with the model year, model or duty series, body style or cab configuration, trim or package, and clear photographs when uncertain.
What Is Included
- One driver-side Vertical Doors, Inc. hinge assembly
- One passenger-side Vertical Doors, Inc. hinge assembly
- Two gas shocks
- Required mounting hardware
- Vehicle-specific installation instructions
- Technical support from Vertical Doors, Inc.
Product Details
-
Manufacturer: Vertical Doors, Inc.
-
Part number: VDCCHEVYCORC823Z06
-
Vehicle: Chevrolet Corvette C8 Z06 and E-Ray
-
Model years: 2023-2026 Z06; 2024-2026 E-Ray
-
Door movement: Opens outward first, then lifts vertically
-
Kit type: Vehicle-specific bolt-on hinge conversion
-
Mounting: Factory hinge bolt locations
-
Original doors retained: Yes
-
Construction: Domestic hardened-steel hinge components
-
Manufacturing: Made in the USA
How the Vertical Door Conversion Operates
The conversion replaces the factory hinge system while retaining the original Corvette doors. Open the door outward until it reaches the hinge system’s predetermined stopping point, then lift it vertically. The included gas shocks assist with the door’s weight during the lifting motion.
This movement is different from the VDI ZLR Door Conversion. A traditional Vertical Door Kit opens outward first and then lifts; a ZLR system opens in a single diagonal outward motion. Review the Chevrolet Corvette C8 guide if you are deciding between the two systems.
Why Choose a Genuine Vertical Doors, Inc. Kit?
- Vehicle-specific engineering for the C8 Z06 and E-Ray
- Retains the original Corvette doors
- Mounts at the vehicle’s factory hinge locations
- Made in the USA from domestic hardened steel
- Covered by applicable United States patents
- Supported directly by Vertical Doors, Inc.
Installation Requirements
Bolt-on does not mean modification-free. Installation requires mechanical experience, proper tools, safe door support, body-panel removal, wiring clearance, careful hinge adjustment, and final door alignment. A non-visible portion of the fender or inner-fender area may require trimming so the hinge arm can move through its full range.
Before loosening or removing the original hinges, use 2-inch painter’s tape to mark the door’s factory alignment. Place tape across the door and adjacent body at several reference points, including near the hinges and firewall, then draw matching alignment lines across the tape. These marks help preserve the door’s original horizontal and vertical position during installation. Follow the supplied instructions, and verify latch alignment, wiring clearance, panel gaps, gas-shock operation, and safe opening and closing before returning the vehicle to service.
If you are not experienced with door alignment and body-panel work, use a qualified installer. Explore installation options, find a qualified local installer, or review VDI’s installation guidance.
Installation Options
Choose the installation path that best matches your experience and location.
Mobile installation is available only for eligible products and locations. Third-party shops operate independently and establish their own labor terms and warranties.
Support and Ordering
Vertical Doors, Inc. provides fitment and installation support Monday through Friday, 8:30 a.m. to 4:00 p.m. Pacific Time. Have the part number, vehicle details, and clear photographs or video available when requesting technical assistance.
Current inventory and fulfillment status appear near the Add to Cart button. Review the shipping policy and refund policy before ordering.
Frequently Asked Questions
Does this kit fit a Corvette C8 Stingray?
No. Most 2020-2026 Stingray applications use the separate VDCCHEVYCORC820 Vertical Door Kit.
Does this kit fit both the Z06 and E-Ray?
Yes. VDI lists VDCCHEVYCORC823Z06 for the 2023-2026 C8 Z06 and 2024-2026 C8 E-Ray. Contact VDI before ordering if the vehicle has aftermarket bodywork, prior collision repair, or other significant modifications.
Does the conversion replace the factory doors?
No. It retains the original Corvette doors and replaces the factory hinge system with the vehicle-specific VDI hinge and gas-shock assemblies.
Can I install it myself?
An experienced installer with the correct tools and alignment skills may perform the installation. Professional installation is recommended when the installer is not comfortable with panel removal, trimming, wiring clearance, hinge adjustment, and door alignment.
